Media Management

The Media Management interface allows you to organize, view, and manage all captured photos and videos from your drone operations.

Overview​

Media Management provides:

  • File Browser - Navigate and organize media files
  • Preview - View photos and videos in the browser
  • Download - Export media for external use
  • Organization - Folders, tags, and metadata
  • Sharing - Share media with team members

Interface Layout​

  • Folder hierarchy
  • Quick filters
  • Search functionality

Content Area​

  • Grid or list view of media files
  • Thumbnails and previews
  • File details

Preview Panel​

  • Full-size media preview
  • Metadata display
  • Action buttons

Browsing Media​

View Modes​

ModeDescription
GridThumbnail gallery view
ListDetailed list with metadata
TimelineOrganized by capture date

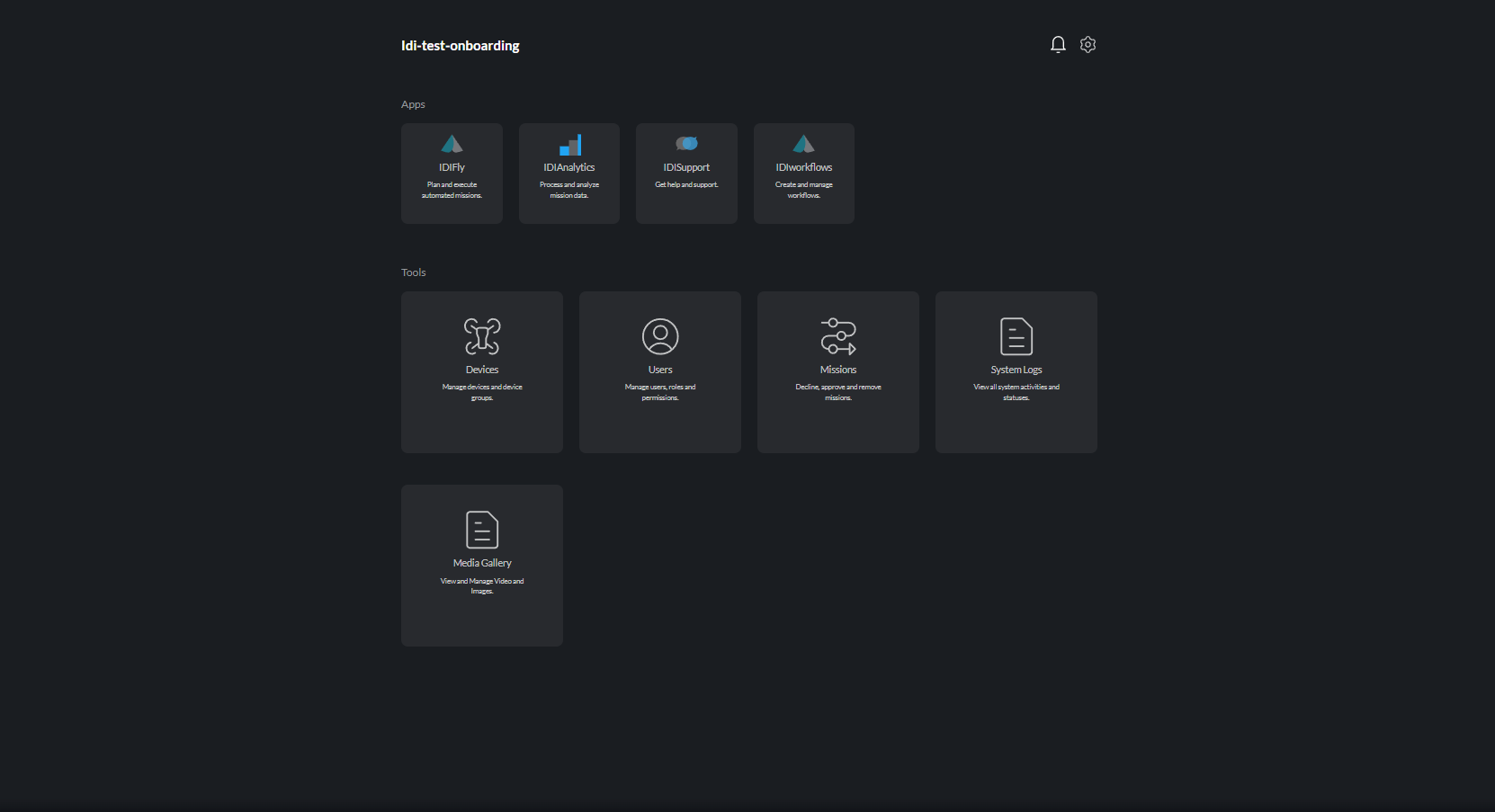

Gallery select

Browse media by:

  • Date - Calendar-based navigation
  • Device - Filter by aircraft
  • Flight - Group by flight session
  • Folder - Custom organization
  • Tags - User-defined labels

Sorting​

Sort media by:

  • Date captured (newest/oldest)
  • File name
  • File size
  • Duration (videos)

Filtering Media​

Quick Filters​

  • All Media - Show everything
  • Photos - Images only
  • Videos - Video files only
  • Favorites - Starred items
  • Recent - Recently captured

Advanced Filters​

Filter by:

FilterOptions
Date RangeCustom start/end dates
DeviceSpecific aircraft
PilotCaptured by specific user
File TypeJPG, PNG, MP4, etc.
ResolutionImage/video dimensions
SizeFile size range

Viewing Media​

Photo Preview​

Click any photo to open the preview:

  • Zoom - Scroll or pinch to zoom
  • Pan - Click and drag to move
  • Fullscreen - Expand to full screen
  • Navigate - Arrow keys for next/previous

Video Playback​

Click any video to play:

  • Play/Pause - Space bar or click
  • Seek - Click timeline or use arrows
  • Volume - Adjust audio level
  • Speed - Playback speed control
  • Fullscreen - Expand video player

Metadata View​

View captured metadata:

DataDescription
Date/TimeWhen captured
LocationGPS coordinates
AltitudeHeight when captured
DeviceAircraft used
Camera SettingsISO, shutter, aperture
File InfoSize, format, resolution

Downloading Media​

Single File Download​

  1. Select a file
  2. Click Download button
  3. File saves to your device

Bulk Download​

  1. Select multiple files (Ctrl/Cmd + click)
  2. Or use Select All for entire folder
  3. Click Download Selected
  4. Files download as ZIP archive

Download Options​

  • Original - Full resolution file
  • Optimized - Compressed version
  • Thumbnail - Small preview image

Organizing Media​

Creating Folders​

  1. Click New Folder in navigation
  2. Enter folder name
  3. Click Create

Moving Files​

  1. Select files to move
  2. Drag to destination folder
  3. Or use Move To menu option

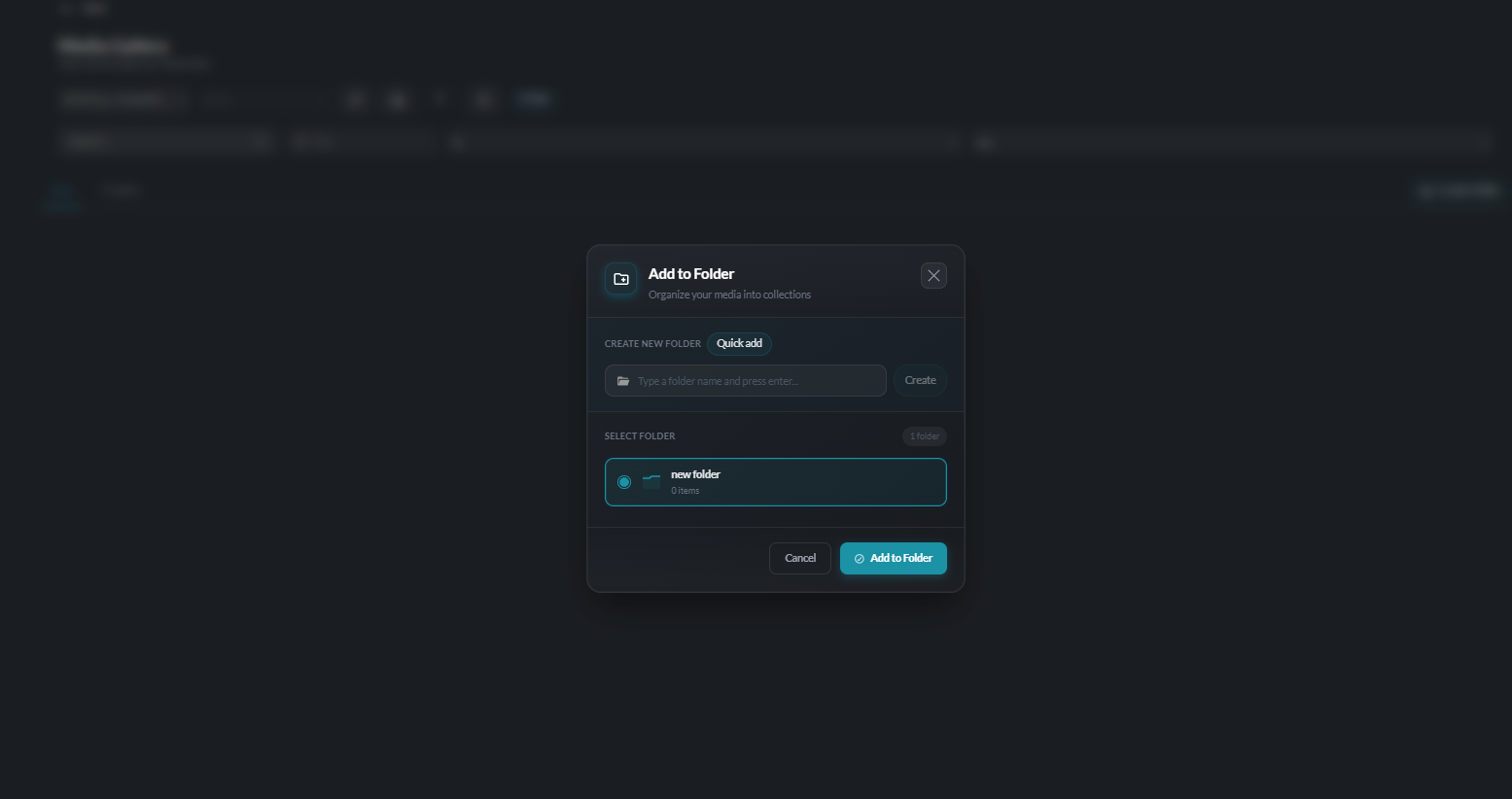

Add to folder modal

Tagging​

Add tags for easy finding:

  1. Select file(s)
  2. Click Add Tags
  3. Enter or select tags
  4. Click Apply

Favorites​

Mark important files:

  1. Select file
  2. Click the star icon
  3. Access via Favorites filter

File Operations​

Rename​

  1. Select file
  2. Click Rename or press F2
  3. Enter new name
  4. Press Enter to confirm

Delete​

  1. Select file(s)
  2. Click Delete
  3. Confirm deletion
warning

Deleted files are moved to trash and permanently removed after 30 days.

Restore from Trash​

  1. Navigate to Trash
  2. Select files to restore
  3. Click Restore

Sharing Media​

Share with Team​

  1. Select file(s)
  2. Click Share
  3. Select team members
  4. Set permissions (view/download)
  5. Click Share

External Sharing​

  1. Select file(s)
  2. Click Create Link
  3. Configure link settings:
    • Expiration date
    • Password protection
    • Access permissions
  4. Copy and share the link

Share Settings​

SettingOptions
Access LevelView only, Download allowed
Expiration1 day, 7 days, 30 days, Never
PasswordOptional password protection
Download LimitMax number of downloads

Storage Management​

Storage Overview​

View storage usage:

  • Total storage capacity
  • Used space
  • Available space
  • Usage by category

Managing Space​

Free up storage:

  1. Delete unwanted files
  2. Empty trash
  3. Download and remove old media
  4. Archive to external storage

Storage Alerts​

Receive notifications when:

  • Storage reaches 80% capacity
  • Storage reaches 95% capacity
  • Storage is full
  1. Enter keywords in search box
  2. Press Enter or click Search
  3. Results display matching files

Search Options​

Search by:

  • File name
  • Tags
  • Date
  • Location
  • Metadata

Search Tips​

  • Use quotes for exact phrases
  • Combine terms with AND/OR
  • Filter results after searching

Keyboard Shortcuts​

ShortcutAction
EnterOpen selected item
DeleteDelete selected
Ctrl/Cmd + ASelect all
Ctrl/Cmd + DDownload selected
Arrow keysNavigate items
SpacePreview/play
FToggle fullscreen
EscClose preview

Download Progress (Download Pill)​

When a bulk download or export is initiated, the dashboard shows a persistent download progress indicator (the "download pill") in the interface. This section will document how to monitor active downloads, cancel in-progress transfers, and interpret progress states.

Asset Upload​

Media files and reference assets can be uploaded to supported cloud destinations (S3, Azure Blob, or Sketch) directly from the Media panel. This section will cover the upload workflow, supported formats, progress tracking, and error handling.

Asset upload source picker

Troubleshooting​

Media Not Loading​

  • Check internet connection
  • Refresh the page
  • Clear browser cache

Download Failures​

  • Check available disk space
  • Try smaller selection
  • Disable ad blockers

Upload Issues​

  • Verify file format is supported
  • Check file size limits
  • Ensure stable connection
